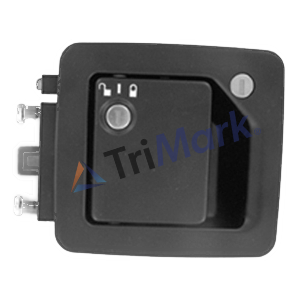

060-0650 Motor Home Entrance Door Hardware With Deadbolt

Designed for motor home entrance doors, this product provides easy installation with a through sandwich mounting. It features a low cost plunger style and is compliant to FMVSS 206 (ECE R11), plus includes a built-in deadbolt for additional security.



This product has been replaced by the 060-1650. We do not recommend the use of this product in new applications. For additional information, please contact Customer Service at 1-800-447-0343.

Designed For

  • Motor home entrance doors with thickness of 1.390" to 1.600". (Different inside plates are required to facilitate range of door thicknesses. Please identify when inquiring.)
  • Fifth-wheel trailers, pull-type and slide-in campers
  • Doors requiring resistance to water and dirt infiltration
  • Universal applications--either right or left handed

Available

  • With optional built-in dead bolt (060-0650)
  • Master keyed paddle key cylinder. Non-master keyed deadbolt

Features/Benefits

  • Paddle can be locked before door is shut
  • Paddle is rigid when locked
  • Automotive styling
  • Comfortable finger access
  • Inside assist for easy closing
  • Serviceable shuttered key cylinder
  • Built-in dead bolt eliminates the need for an add-on residential type dead bolt
  • Deadbolt locks into the fully extended position for true dead bolt functioning (060-0650)

Material

  • Housing, inside plates, paddles, plunger bolt and certain lock actuating components: die cast zinc alloy
  • Strike plate: heat treated and zinc plated steel

Finish

  • Black powder coated
  • Copper-nickel-chrome plated

Installation

  • #10-24 UNC mounting screws (not included). Recommended torque 10 in-lbs (1.1 N-m). 1/4-20 UNC grade 5-type fasteners for strike plate installation recommended
  • Supplied with gasket already applied under recess in housing flange
  • Sandwich mount installation does not require any linkage rods

Meets FMVSS 206 (ECE R11) load requirements and may be used in FMVSS 206 (ECE R11) applications pending TriMark application approval.

Individual part dimensions are for reference only. Refer to individual part drawings for complete dimensions, specifications, and installation procedures. Engineering assistance and application drawings are available.

Typical Uses

Typical application use illustrations are organized by Industry/System and are intended to give the user some ideas for specifying a complete system using TriMark products.

Not all Industry/System applications have typical use illustrations. If a typical use illustration is not available for your specific application, please submit a technical product information request and a technical representative can assist you in selecting a product(s) solution for your specific application.

060-0650 Motor Home Entrance Door Hardware With Deadbolt

  • Motor Homes

    Exterior Personnel Doors

    Interior Personnel Doors


  • Trailers - Ranch / Farm / Cargo / Utility

    Exterior Personnel Doors

    Interior Personnel Doors


  • Travel Trailer / 5th Wheel

    Exterior Personnel Doors

    Interior Personnel Doors
