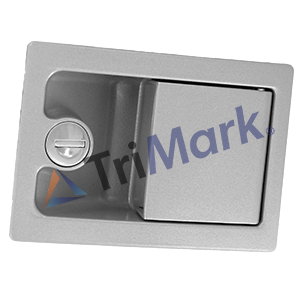

030-7300 Compact Recessed Paddle Handle

Compact recessed zinc die cast paddle handle suitable for entrance/compartment doors. Robust design that provides long term durability.

Features/Benefits

  • Non-handed style
  • With mounting gaskets
  • A variety of key coding available
  • Used with a variety of available interior plunger style latches
  • Accommodates door thickness from 25mm (.98") to 50mm (1.97")

Available

  • Several options are available to suit a variety of applications

Material

  • Sturdy zinc die cast alloy housing and paddle components

Finish

  • Standard black or silver powder coated
  • Other color options available upon request

Installation

  • Easy to install, (4) 5mm fixing screws (not included). Recommended mounting fastener torque not to exceed 6 N-m (50 lbs-in).
  • Various base plates available

Individual part dimensions are for reference only. Refer to individual part drawings for complete dimensions, specifications, and installation procedures. Engineering assistance and application drawings are available.

Caution: Product does not meet the locking requirements for FMVSS 206 (ECE R11).

Typical Uses

Typical application use illustrations are organized by Industry/System and are intended to give the user some ideas for specifying a complete system using TriMark products.

Not all Industry/System applications have typical use illustrations. If a typical use illustration is not available for your specific application, please submit a technical product information request and a technical representative can assist you in selecting a product(s) solution for your specific application.

030-7300 Compact Recessed Paddle Handle

  • Motor Homes

    Exterior Personnel Doors


  • Trailers - Ranch / Farm / Cargo / Utility

    Exterior Personnel Doors
